System Implementation Overview
This is an example of a presentation AV system that uses a Crestron AV auto-switcher transmitter and receiver set. The connection between the transmitter and receiver can be extended up to 70 meters, allowing flexible installation according to the size of the room. The system enables smooth automatic switching of video signals based on priority settings and supports remote operation via a web browser.

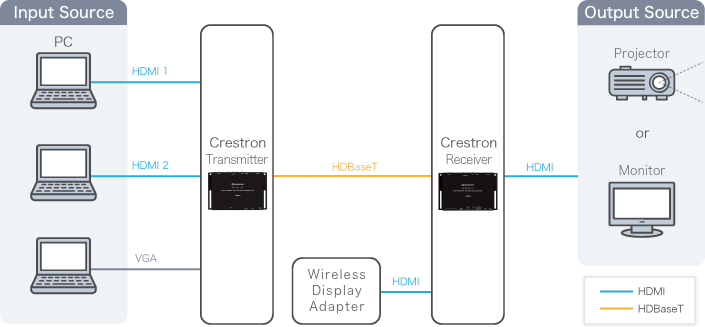

System Diagram
＜Equipments＞
- ・AV Auto Switcher: HD-MD-400-C-E KIT
- ・Monitors: TH-98SQ1J、PN-HW551、PN-R706…等
- ・Wireless Display Adapter: P3Q-00009
